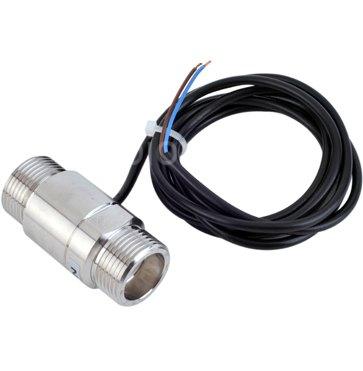

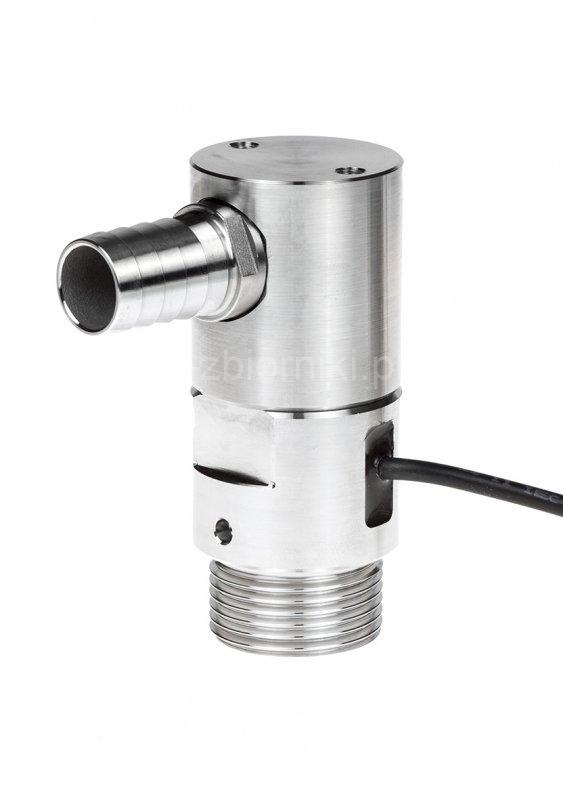

Pulser flowmeter AdBlue®

Pulser flowmeter AdBlue®

We faced the challenge of designing such tanks, in which modern panels will be installed to enable fuel management, and the flow meters will be used to count pulses and transmit them to a single place, where consumption will be presented. In our offer you will find pulse flow meters, which are extremely accurate in transmitting data from the flow in both diesel tanks and the increasingly popular AdBlue® tanks.

in stock In stock

Click & Collect

This item is available for collection.

Home Delivery

Delivery from €4.04 inc VAT

check delivery cost

updown
€272.15 inc VAT
(€221.26 ex VAT)
Product Description

Parameters:

  • flow range: 10-40 l./min.
  • resolution: 88 pulses per litre
  • accuracy: ±1% after calibration
  • max. pressure: 10 bar
  • liquid viscosity: 2-5.35 cSt
  • raw output signal: 100 mA
  • max. voltage: 28 V AC/DC
  • max. load: 3 W
  • max. liquid temperature: +50°C
  • connector: 1″ BSP male
  • reproducibility (typical): ±0.3 (%)

Product Specification

  • Product Code: AB/PP/2/FLOW
  • Weight: 0.670kg
  • Dimensions: D:120mm W:100mm H:100mm
