Digital flowmeter K24, AdBlue®
The K24 meter, due to its size, is very often installed in tanks just behind the filling gun. However, there is no obstacle to installing it in the distribution system of the tanks - as long as we have the components that make it possible to install it this way.
Digital flowmeter ModiFlow COMPACT
The ModiFlow COMPACT digital meter is equipped with an LCD liquid crystal display mounted on top of the flow meter. Thanks to the use of a pendulum rotor. It enables accurate measurement and provides simple and convenient operation. It can be widely used in petroleum, chemical, urea, pharmaceutical, as well as transportation and food industries.
Pulser flowmeter AdBlue®
We faced the challenge of designing such tanks, in which modern panels will be installed to enable fuel management, and the flow meters will be used to count pulses and transmit them to a single place, where consumption will be presented. In our offer you will find pulse flow meters, which are extremely accurate in transmitting data from the flow in both diesel tanks and the increasingly popular AdBlue® tanks.
Digital flowmeter K24
Parameters:
measuring system: turbine,
flow: from 7 to 120l./min.,
working pressure: 20 bar,
bursting pressure: 100 bar,
storage temperature: from -20 deg. to +70 deg.C.,
working temperature: from -10 deg. to +50 deg.C.,
max. humidity: 85%,
flow resistance: 0.3 bar at 100l./min.
accuracy: +/-1%,
repeatability: 0.3%,
protection factor: IP65,
single filling counter: 4 digits,
total...
Digital flowmeter K600
Parameters:
current refueling display 5 - digital
total flow display 8 - digital
accuracy of measurement +/- 0.5
repeatability of measurement 0,2
maximum pressure of 30 bar
possibility of calibration
connection 1"
dimensions 6x7 cm
weight 1.6 kg
battery 2 x 1.5V AAA
The warranty is subject to the product being used in accordance with the manufacturer’s instructions.
The...

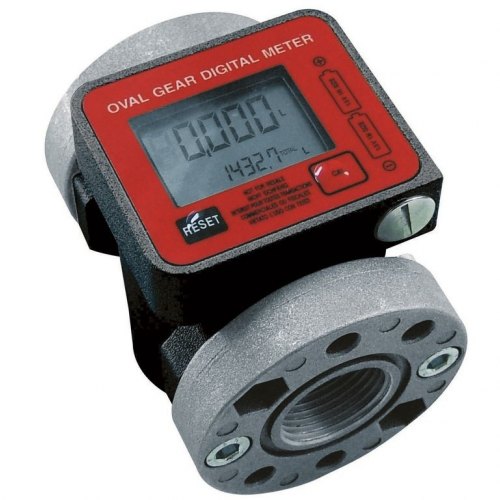

Digital flowmeter ModiFlow
The ModiFlow electronic oval-wheel counter has versatile applications including the chemical, food and petroleum industries. The aluminium body of the device and the elements built from the highest quality components guarantee a high durability and service life of the device.
Digital flowmeter ModiFlow PRO
The electronic oval-wheel counter ModiFlow PRO has versatile applications, including those in the chemical, food and petroleum industries. The aluminium body of the device and the components made of the highest quality components guarantee a long life and durability of the device
MECHANICAL FLOW METER MODIFLOW EASY
The ModiFlow EASY Series mechanical flow meter is used for flow measurement of a wide range of fluids. This meter can be used in the oil, transport sector to measure the flow of diesel, bio-diesel, fuel oil, among others. The use of an aluminium body and a simple mechanical rotor results in high durability and easy handling.
MECHANICAL FLOW METER MODIFLOW EASY TOP
The ModiFlow mechanical flow meter of the EASY TOP series is used for flow measurement of a wide range of fluids. This meter can be used in the oil sector, transport sector to measure the flow of diesel fuel, bio-diesel, heating oil, among others. The use of an aluminium body and a simple mechanical rotor results in a long service life and easy handling.

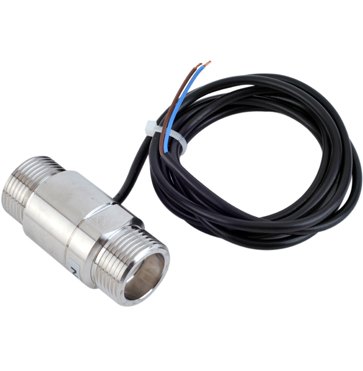

Pulser flowmeter
Parameters:
1" connection,
used in tanks equipped with the multi-access system MC Cube, PIUSI,
used in tanks equipped with the modern Watchman Access panel,
max. working pressure 30 bar,
measurement repeatability 0.2;
accuracy +/- 0.5%
The warranty is subject to the product being used in accordance with the manufacturer’s instructions.
The dimensions given are...
Pulser flowmeter ModiFlow Pulser
The ModiFlow PULSER electronic oval-wheel counter has a wide range of applications, including those in the chemical, food and petroleum industries. The aluminium body of the device and the components made of the highest quality components guarantee a high durability and service life of the device.
