BlueMaster^® with TMS System with insulation

BlueMaster^® with TMS System with insulation

Equipment:

• TMS system with display, controlling heating and ventilation,
• digital flowmeter with liquid level measurement by pressure probe, pulse output,
• submersible pump with max. 40 l./min*,
• stainless steel filling line with 2" dry coupling at the working level,
• heating of the distribution area,
• ventilation,
• automatic filling nozzle,
• pistol grip with automatic on/off switch,
• distribution hose, length: 4m (capacity 2500 l.), or 6m (other capacities),
• dispenser box lighting,

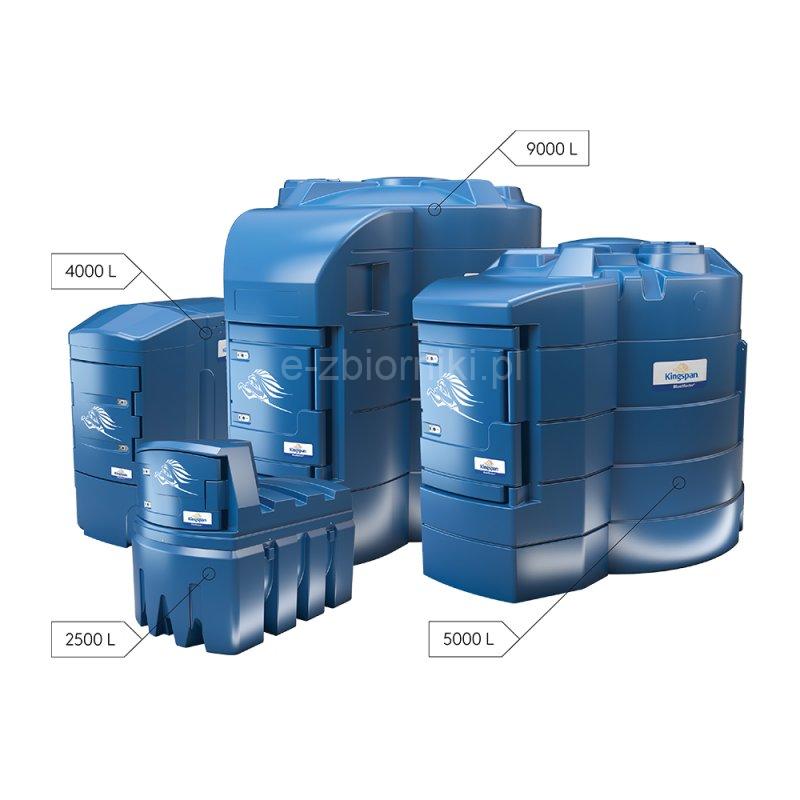

• large distributor box (for capacities: 4000 l., 5000 l. and 9000 l.)
• insulation of the inner tank

* The pump flowrates listed are the maximum flow rates across the pump as defined by the pump manufacturer. The actual flowrate in service will be lower. How much lower will depend on the equipment specification, how well the equipment is maintained, the quality of the media being pumped and the operating temperature.

The dimensions given are approximate. The differences result from the production technology and method of use of the product.

The warranty is subject to the product being used in accordance with the manufacturer’s instructions.
